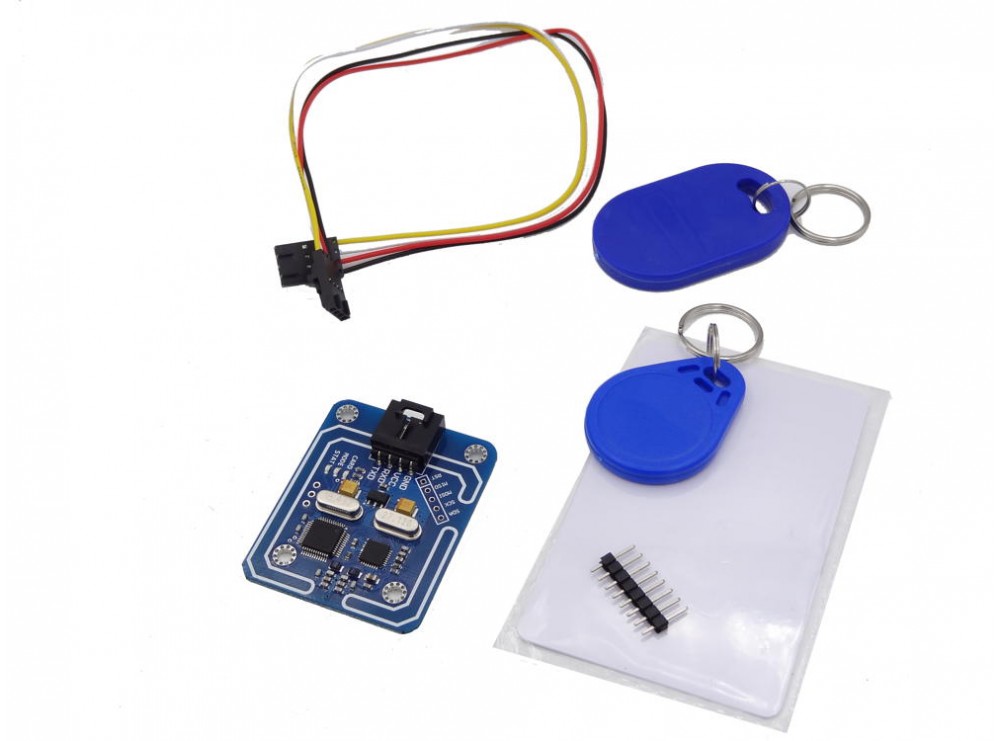

ماژول RFID R/W خواندن و نوشتن 13.56MHZ

Introduction

Command format of this version is completely compatible with old version. There are two kinds of command: Basic command and compact command. All the command are in Hex format. Please download manual for more information. Connecting with Arduino is pretty easy. With Arduino Sensor Shield, just plug in and play. it supports more types of cards and has better reading/writing performance
This RFID module is based on MFRC522. It is a highly integrated reader/writer for contactless communication at 13.56MHz. It supports ISO 14443A/MIFARE mode and MIFARE Classic (e.g. MIFARE Standard) products. Contactless communication using MIFARE higher transfer speeds up to 848kbit/s in both directions.
We embeded an MCU on this module. Through the API, you could do writing and reading work. All the command is sent through UART. There is also a SPI interface on the board. This is the MFRC's SPI. You can access MFRC directly via this inteface.

Specification

• Support 7-byte UID reading.
• Support various Mafare cards
• Outstanding Reading/Writing distance
• Special Electronic Wallet Fountion
• Control by Serial UART interface: Baud rate could be 2400bps ~ 115200bps, with default baud rate 9600bps
• Configuration data is preserved in EEPROM against power cut off
• Built-in 8K EEPROM for data storage
• Easy to use, by sending simple commands users can control it to read or write cards
• In compact command, command is as short as one byte
• Power Supply: 4.5V~5.5V, typically 5V.
• Interface: UART (5V TTL) and SPI (3.3V TTL)
• Size: 40mm x 50mm
• Baud rate could be 2400bps ~ 115200bps
• Baud Rate: 9600bps
• Parity bit: None
• Start bit: 1
• Data bit: 8
• Stop bit: 1
