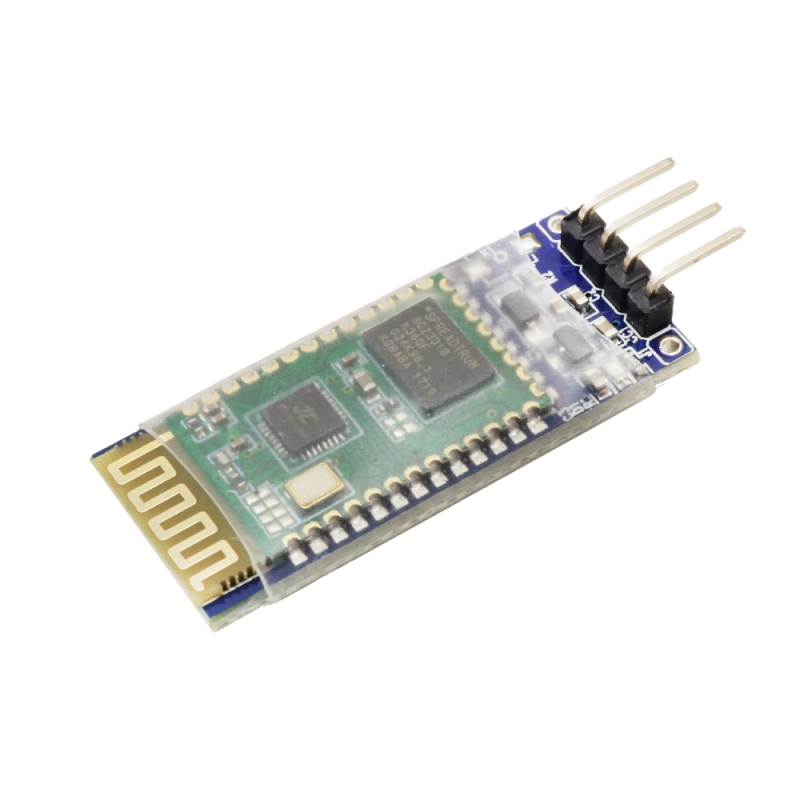

ماژول بلوتوث سریال HC-06 همراه با برد کمکی

Introduction

HC06 Module is an easy to use Bluetooth SPP(Serial Port Protocol) module and it is designed for wireless serial communication applications. Thanks to its pins coming out from the board, you can use it easily on a breadboard with Arduino or your projects and you can prototype quickly.
The core module uses the HC-06 slave module, and the leading interfaces include VCC, GND, TXD, RXD, and the LED status output pin is reserved. The single-chip microcomputer can judge whether Bluetooth is connected by the state of this pin.

Application
Bluetooth POS devices
Smart home control
Automotive ODB test equipment
Bluetooth toys
Wireless data transmission
Medical Equipment

Specification

1. The LED indicates the status of the Bluetooth connection. Blinking indicates that there is no Bluetooth connection. Steady on indicates that Bluetooth is connected and port.
2. The input voltage is 3.6 ~ 6V. The current is about 30mA when unpaired and about 10mA after pairing The input voltage must not exceed 7V!
3. The interface level is 3.3V, which can be directly connected to various single-chip microcomputers (51, AVR, PIC, ARM, MSP430, etc.), and 5V single-chip microcomputers can also be directly connected without MAX232 or MAX232!
4. The effective distance is 10 meters in the open, and more than 10 meters is possible, but the quality of the connection is not guaranteed.
5. After pairing, it is used as a full-duplex serial port without knowing any Bluetooth protocol, but only supports 8 data bits, 1 stop bit, no parity communication format, which is also the most commonly used communication format and does not support other formats.
6. When the Bluetooth connection is not established, the baud rate, name, and pairing password can be set through AT commands, and the set parameters can be saved after power off. After Bluetooth connection, it automatically switches to transparent transmission mode.
7. Compact size (3.57cm * 1.52cm), factory patch production to ensure the quality of the patch. Parallel transparent heat-shrinkable tube, dust-proof and beautiful, and has a certain anti-static ability.
8. The link is a slave. The slave can be paired with various Bluetooth-enabled computers, Bluetooth hosts, most Bluetooth-enabled mobile phones, PDAs, PSPs, and other smart terminals. The slaves cannot be paired.

Bluetooth Protocol: Bluetooth 2.0+EDR (Enhanced Data Rate)
Chipset: CSRBC417
Frequency: 2.4GHz
level Voltage: 3.3v
Input Voltage: 4.2~6v
Current : 30mA
Effective Distance : 10m
Precision: ≤-80 dBm
Output Power: ≤+4 dBm
Asynchronous Speed: 2.1 MBps/160 KBps
Synchronous Speed: 1 MBps/1 MBps
Security: Identity Validation and Encryption
Default Baud Rate: 9600, 8, 1, n
Dimensions: 37mm x16mm
Default Passcode: 123
