ماژول کوره القایی ZVS پرقدرت 3KW
zoom_out_map
chevron_left chevron_right

ماژول کوره القایی ZVS پرقدرت 3KW

3011007181

ماژول کوره القایی ZVS دارای محدوده ولتاژ ورودی 12V الی 54V  ولت DC ، حداکثر جریان 60 آمپر

3.5
(امتیاز 2 رأی‌دهنده)
59,200,000 ریال

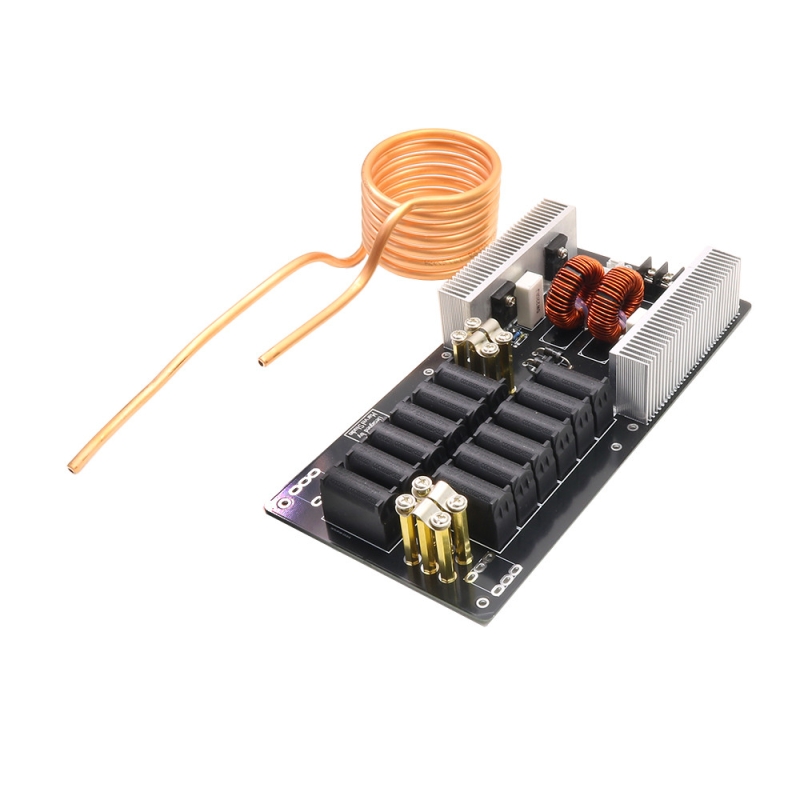

این مدل ماژول کوره القایی ZVS با توان بالای 3000 وات، گزینه‌ای ایده‌آل برای کاربران حرفه‌ای، دانشجویان و مهندسانی است که به دنبال راهکاری پرقدرت برای ذوب فلزات، آنیلینگ و سخت‌کاری سطحی هستند. عملکرد این مدار مبتنی بر اصل تشدید سری LC و سوئیچینگ در نقطه صفر ولتاژ (ZVS) است که باعث کاهش تلفات، جلوگیری از گرم شدن بیش از حد و افزایش راندمان می‌شود. مدار از ترانزیستورهای MOSFET پرقدرت با خنک‌کننده آلومینیومی، سلف دوبل با هسته فریت و مجموعه‌ای از خازن‌های پلی‌پروپیلن با ظرفیت بالا تشکیل شده است. برخلاف مدل‌های مشابه، این ماژول فاقد فن است و باید به دو عدد فن 12×12 سانتی‌متری 24 ولت تجهیز شود. کویل حرارتی این مجموعه از لوله‌ی مسی ضخیم و انعطاف‌پذیر با قطر تقریبی 5 میلی‌متر ساخته شده و برای خنک‌کاری مؤثر نیاز به پمپ آب گردش دارد. همچنین برای محافظت از مدار در برابر جریان بالا، استفاده از فیوز 60 آمپر پیشنهاد می‌شود.

با توجه به تلفات حرارتی بالای این کوره ها حتما برای استفاده از دوعدد فن 24 ولتی در ابعاد 12*12 سانتی متری استفاده و بر روی برد نصب گردد


مشخصات

  • ولتاژ کاری: 12 تا 54 ولت DC
  • ولتاژ پیشنهادی: 48 ولت DC
  • جریان کاری: 20 تا 60 آمپر
  • توان خروجی: 3000 وات
  • ابعاد برد:  240X120X45 میلیمتر
  • توان: 3000 وات
  • در ولتاژ 12 ولت جریان بالای 10 آمپر
  • در ولتاژ 15ولت و بالاتر جریان بالای 20 آمپر
  • در ولتاژ 36 ولت و بالاتر جریان بالای 50 آمپر
  • حداکثر دمای تولیدی: 1700 درجه سانتی‌گراد
  • خنک‌سازی: نیاز به نصب دو عدد فن 24V در ابعاد 12×12 سانتی‌متر
  • سیم‌پیچ حرارتی: مسی با ضخامت حدود 5 میلی‌متر، حدود 10 دور
  • ورودی تغذیه: فقط DC
  • حداکثر جریان مجاز: 60 آمپر


کاربردهای رایج

این ماژول با توان بالا و طراحی حرفه‌ای، برای ذوب فلزات در مقیاس کوچک تا متوسط، تولید تجهیزات گرمایشی صنعتی و کاربردهای تحقیقاتی و آموزشی بسیار مناسب است. عملکرد پایدار، گرمایش سریع و یکنواخت، و قابلیت کار با بوستر ولتاژ از ویژگی‌های ممتاز آن است.

  • ذوب طلا، نقره، مس و آلومینیوم
  • سخت‌کاری سطحی قطعات فلزی
  • آنیلینگ ابزار و قطعات مهندسی
  • عملیات حرارتی دقیق در متالورژی
  • ساخت تجهیزات القایی قابل حمل
  • تحقیقات دانشگاهی در الکترونیک قدرت
  • آموزش عملی گرمایش القایی
  • پروژه‌های DIY صنعتی و نیمه‌صنعتی
  • ساخت کوره القایی با کنترل سفارشی
  • شبیه‌سازی و تست سیستم‌های توان بالا


نحوه استفاده

  • حتما موارد ایمنی را در استفاده از این دستگاه رعایت کنید، هنگام کار، از عینک های محافظ چشم، دستکش مخصوص و یک محافظ ضخیم مقاوم در برابر شکستکی و حرارت بین خود و دستگاه استفاده نمایید.
  • سیم پیچ مخصوص این ماژول دارای 10 دور از سیم لاکی 5 میلی متری ساخته شده و به همراه برد ارانه می گردد.
  • محدوده ولتاژ کاری بین 12 تا 54 ولت بوده و جریان بالای 50 آمپر


محتویات

  • کوره القایی
  • سیم پیچ مخصوص

Introduction

This induction heating circuit uses 12-54V low-voltage DC power supply , the maximum current is 60A, and the maximum power is 3000W. It can work continuously under the condition of good heat dissipation. Because of its moderate power, it can be used for DIY play It can be used for quenching, annealing and other heat treatment for small parts, and can also be used with graphite crucibles to smelt gold, silver, copper, aluminum and other metals, and the heating is uniform and fast, which is very convenient.

Specification

Input voltage: DC 12V ~ 54V
Recommended Input voltage range: DC 48V
Maximum input current: 60A (short)
Maximum power: 3000W
When used in heating, the power must be large enough!
12V power supply, the current should be more than 10A
15V power supply, the current should be more than 20A
36V power supply, the current should be more than 50A
size: 150X150X95  mm
The power used to heat the power must be large enough

Instruction

1. The power of induction heating is very high when working. In addition to the heat generated by the PCB board and electronic components, the heating coil also generates a large amount of heat. In order to prevent the heating coil from burning out and affecting the entire system, be sure to use a cooling water pump for the heating coil;

2. You must pay attention when using a switching power supply, because high-power switching power supplies generally have a slow-start function, that is, the output voltage rises slowly at the beginning. If the induction heating circuit is turned on before the voltage rises to 11V, the voltage will If it is not enough, the circuit will not vibrate, causing the MOS tubes on both sides to conduct at the same time and burning the components. Therefore, be sure to wait until the switching power supply voltage stabilizes (about 10 seconds) before connecting to the induction heating circuit. You can connect an air gap between the power supply and the motherboard. Switch, wait until the switching power supply is powered on and stabilized, then push the circuit breaker, and then press the button marked switch next to the green interface on the board to turn on the heating. The shutdown sequence is to first turn off the switch on the motherboard and then turn off the circuit breaker ;

3. This circuit has very strict power requirements for the power supply. The 12V power supply must use a power supply greater than 500W, 24V greater than 1200W, 36V greater than 2000W, and 48V greater than 2600W (recommended operating voltage is 48V);

4. No matter it is used at any voltage, as long as the operating current is lower than 60A, the circuit will not be burned. Therefore, a 60A fuse can be added to protect the circuit when running at high power;

5. It is inevitable to generate heat during high-power operation, so you should use a fan to effectively dissipate heat while working;

6. The working voltage must not be lower than 12V;

7. When the heating machine is working, the heating ring will generate a high amount of heat. Water cooling must be used to cool down the heating ring to prevent damage to the motherboard due to high temperatures;

8. The power input terminals are marked with positive and negative poles, do not connect them reversely! The use of alternating current is absolutely prohibited! !

9. The heating coil may be deformed during transportation, resulting in a short circuit between layers. Please separate it before connecting it to the motherboard, otherwise it may be overloaded and burn out the motherboard.

10. Do not power on without load (no-load here means that the output is not connected to any load, and the heating coil does not heat the object is not considered no-load), otherwise the board will emit high-frequency noise, which will instantly burn out the motherboard and completely scrap it!

11. When using graphite crucibles, non-circulating water cooling must be used, that is, cold water enters hot water and is discharged into the sewer to prevent long-term high water temperature from affecting the service life (this water cooling method should also be used for long-term high-power operation). Never disconnect the 12V auxiliary power supply when the crucible is not taken out of the heating coil after heating, otherwise the water pump will stop working and the heating coil will be burned out by the temperature of the crucible.
