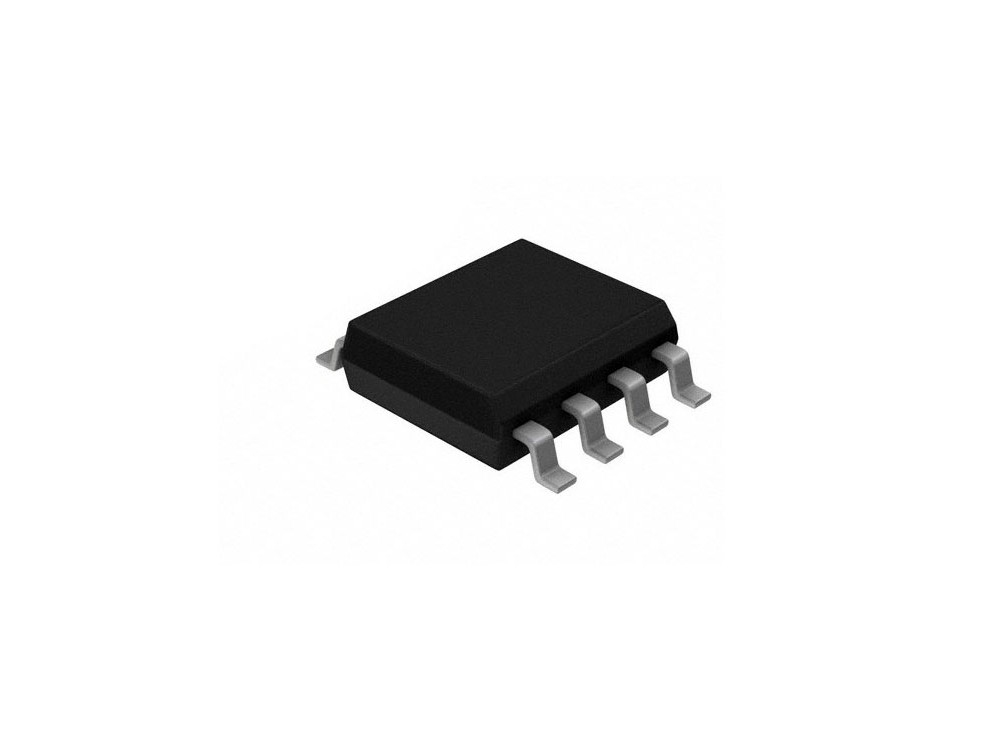

تراشه شارژ سریع CHY103D پکیج SO-8

Introduction

CHY103 is a USB interface IC that supports Class A and Class B of the Quick Charge 3.0 specification. It includes features that protect the power supply and its connected Powered Device (PD) from excessive output voltages, secondary-side thermal overload, and faulty power delivery while adapter is unplugged.

The CHY103 interface IC automatically detects whether a connected PD is Quick Charge 3.0 or Quick Charge 2.0 capable before enabling output voltage adjustment. If a PD that is not compliant to Quick Charge 2.0 or 3.0 is detected, the CHY103 disables output voltage adjustment to ensure safe operation with legacy 5 V-only USB PDs.

Specification

Supports Quick Charge 3.0 specification◦Class A: 3.6 V to 12 V output voltage
Class B: 3.6 V to 20 V output voltage
Adaptive output overvoltage protection (AOVP)◦Protects output from exceeding 120% of set output voltage\
Secondary over-temperature protection (SOTP)◦NTC resistor can be freely positioned inside enclosure
Output soft short-circuit protection (OSSP)◦Protects output from delivering power while unplugged
Monitoring initiated automatically or remotely through PD
Remote shutdown protection (RESP)◦Enables Powered Device to shutdown adapter
Very low power consumption◦Below 1 mW at 5 V output
Fail safe operation◦Adjacent pin-to-pin short-circuit fault
Open-circuit pin fault
Supports InnoSwitch™, TinySwitch™, and TOPSwitch™
