Introduction

The TPA3110D2 is a 15-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. Advanced EMI Suppression Technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ speaker protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a "virtual" voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs.

Specification

Manufacturer: Texas Instruments
Product Category: Audio Amplifiers
Series: TPA3110D2
Product: Audio Amplifiers
Class: Class-D
Output Power: 15 W
Mounting Style: SMD/SMT
Type: 2-Channel Stereo

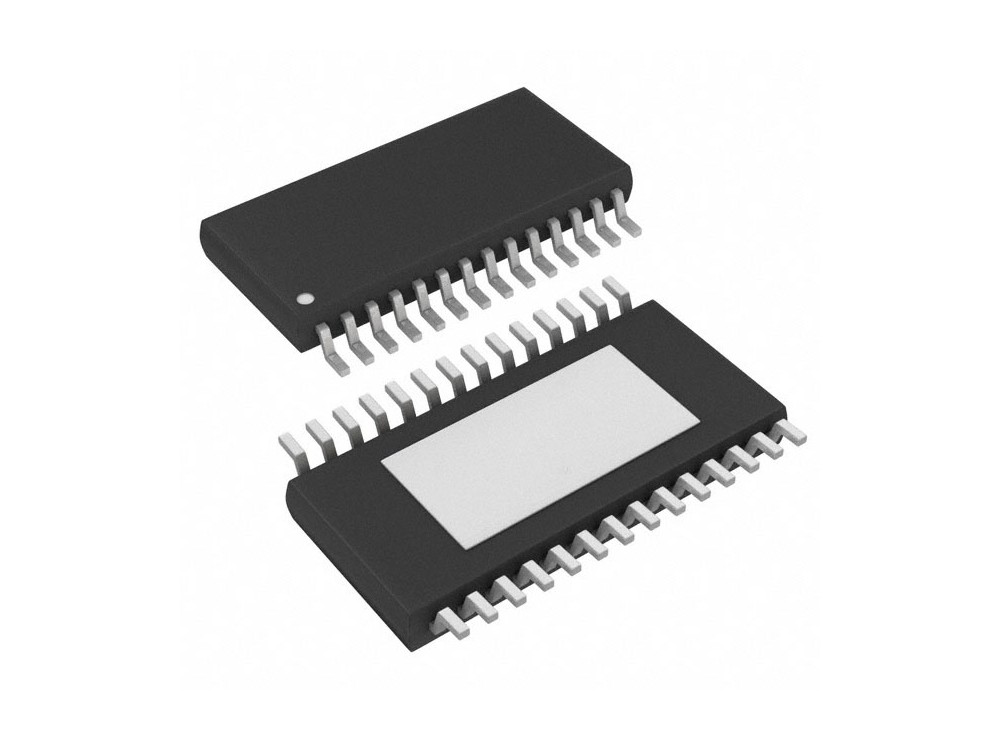

Package / Case: HTSSOP-28
Audio - Load Impedance: 8 Ohms
THD plus Noise: 0.1 %
Supply Voltage - Max: 26 V
Supply Voltage - Min: 8 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: Texas Instruments
Description/Function: Speaker
Development Kit: TPA3110D2EVM
Gain: 36 dB
Height: 1.15 mm
Input Type: Analog
Length: 9.7 mm
Moisture Sensitive: Yes
Number of Channels: 2 Channel
Operating Supply Voltage: 9 V, 12 V, 15 V
Output Signal Type: Differential
Output Type: 2-Channel Stereo
Pd - Power Dissipation: 4480 mW
Product Type: Audio Amplifiers
PSRR - Power Supply Rejection Ratio: 70 dB
15-W/ch into an 8-Ω Loads at 10% THD+N From a 16-V Supply
10-W/ch into 8-Ω Loads at 10% THD+N From a 13-V Supply
30-W into a 4-Ω Mono Load at 10% THD+N From a 16-V Supply
90% Efficient Class-D Operation Eliminates Need for Heat Sinks
Wide Supply Voltage Range Allows Operation From 8 V to 26 V
Filter-Free Operation
SpeakerGuard™ Speaker Protection Includes Adjustable Power Limiter Plus DC Protection
Flow Through Pin Out Facilitates Easy Board Layout
Robust Pin-to-Pin Short Circuit Protection and Thermal Protection With Auto Recovery Option
Excellent THD+N / Pop-Free Performance
Four Selectable, Fixed Gain Settings
Differential Inputs
