برد آردوینو نانو Arduino RF-Nano مدل CH340G+NRF24L01
zoom_out_map
chevron_left chevron_right

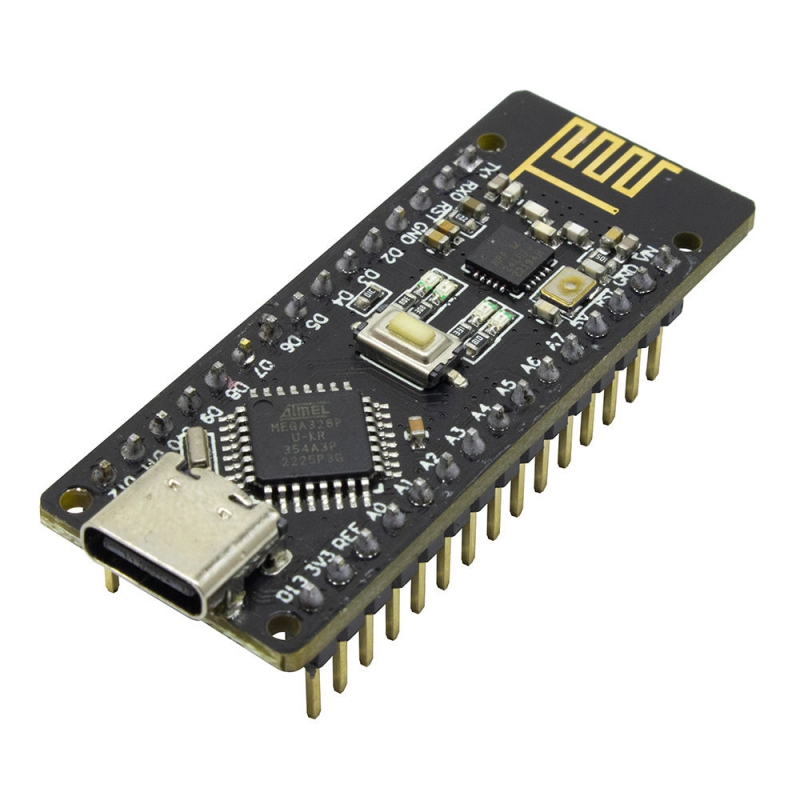

برد آردوینو نانو Arduino RF-Nano مدل CH340G+NRF24L01

3400001055

برد Arduino RF-Nano به همراه NRF24L01 با تراشه سریال CH340 با میکروکنترلر ATmega328 دارای USB Type-C

4,500,000‎ ریال (با مالیات) 4,500,000‎ ریال (بدون مالیات)

معرفی

آردوینو نانو یک برد قابل برنامه ریزی اوپن سورس کوچک و کامل است که بر اساس میکرو کنترلرATmega328 سری AVR ساخته شده است.در طراحی این سری از آردوینو نانو از آی سی CH340 به جای FT232 استفاده شده که جهت ارتباط با برد باید درایور CH340 بر روی سیستم نصب شود.

این نوع از برد های آردوینو فاقد جک آداپتور می باشد و با یک کابل USB-Mini کار می کند. همچنین طراحی آردوینو نانو به صورتی است که دارای پین هدر بوده که امکان اتصال آسان به بردبورد را فراهم می‌کند . در این مدل علاوه بر توضیحات قید شده تراشه NRF24L01 نیز بر روی این ماژول طراحی شده است در واقع با این ماژول امکان استفاده هم زمان از آردوینو و NRF24L01 را دارید و در انواع پروژه های مختلف می توانید به کار ببرید .

مشخصات

  • میکروکنترلر:  ATmega328
  • استفاده از آی سی CH340 به جای FT232
  • دارای تراشه NRF24L01
  • فرکانس کاری : 2.4 گیگا هرتزی
  • فاصله انتقال : حداکثر 50 متر در محیط بدون نویز
  • نوع ورودی : USB Type-C
  • ولتاژ کاری (سطح منطقی): 5 ولت DC
  • ولتاژ ورودی (توصیه شده): 9-12 ولت DC
  • پین ورودی/خروجی دیجیتال: 14 عدد
  • پین PWM ورودی /خروجی : 6 پین
  • پین ورودی آنالوگ: 8 پین
  • جریان DC در هر پین ورودی/خروجی: 40 میلی آمپر
  • حافظه فلش: 16 کیلوبایت (ATmega168) یا 32 کیلوبایت (ATmega328) که 2 کیلوبایت آن توسط بوت لودر استفاده می شود
  • SRAM:  در (ATmega168) مقدار 1 کیلوبایت  و در (ATmega328)  2 کیلوبایت
  • EEPROM: در(ATmega168) مقدار 512 بایت و در(ATmega328)  1 کیلوبایت
  • سرعت کلاک : 16 مگاهرتز
  • ابعاد: :50x19 میلی متر
  • وزن: حدودا 6.5 گرم

Introduction

The Nano Board has a number of facilities for communicating with a computer, another Arduino, or other microcontrollers. The ATmega328P provide UART TTL (5V) serial communication, which is available on digital pins 0 (RX) and 1 (TX). An FTDI FT232RL on the board channels this serial communication over USB and the FTDI drivers (included with the Arduino software) provide a virtual com port to software on the computer. The Arduino software includes a serial monitor which allows simple textual data to be sent to and from the Arduino board. The RX and TX LEDs on the board will flash when data is being transmitted via the FTDI chip and USB connection to the computer (but not for serial communication on pins 0 and 1). A SoftwareSerial library allows for serial communication on any of the Nano’s digital pins. The ATmega328P also support I2C (TWI) and SPI communication. The Arduino software includes a Wire library to simplify use of the I2C bus. To use the SPI communication.
Creative products, RF-Nano-Board: Upgraded nano board for arduino, The main chip is ATMEGA328P-MU QFN32,the latest booloader (Arduino IDE 1.8.8) was burned down. It is fully compatible with the common nano board. RF-Nano-Board is PIN-PIN with Arduino Nano V3.0, and share the same codes.
More convenient for application: The RF-Nano-Board integrates a NRF24L01+ module with arduino nano v3.0 board, which is very convenient for 2.4G wireless connect application.
High quality material and Technology: We used high quality PCB original material and Immersion Gold Technology to make sure every board has smooth edge and more reliable.
Super small volume design, more convenient to use: The PCB size is only 48x19mm, the pin is fully compatible with Nano V3.0, No Soldering needed. The micro usb port is more convenient to use.
Complete Information reference: RF-Nano-Board using CH340 chip to UART, you can download mac, windows, linux three system drivers, datasheets and schematics and other informations from here, we provide quick and free support.

Specification

Microcontroller: ATmega328
Using IC CH340 instead of FT232
Has NRF24L01 chip
Working frequency: 2.4 GHz
Transmission distance: maximum 50 meters in a noise-free environment
Input type: USB Type-C
Working voltage (logic level): 5V DC
Input voltage (recommended): 9-12V DC
Digital input/output pin: 14 pcs
PWM input/output pin: 6 pins
Analog input pin: 8 pin
DC current per I/O pin: 40 mA
Flash memory: 16 KB (ATmega168) or 32 KB (ATmega328), 2 KB of which is used by the bootloader
SRAM: 1 KB in (ATmega168) and 2 KB in (ATmega328)
EEPROM: 512 bytes in (ATmega168) and 1 KB in (ATmega328)
Clock speed: 16 MHz
Dimensions: 50x19 mm
Weight: about 6.5 grams
