ماژول نمایشگر سطح شارژ باترى لیتیم 1 تا 8 سل
zoom_out_map
chevron_left chevron_right

ماژول نمایشگر سطح شارژ باترى لیتیم 1 تا 8 سل

3011015169

 کاربرد جهت سنجش و نمایش میزان سطح شارژ باتری لیتیم های 1 تا 8 سل

تعداد تخفیف قیمت کالا با تخفیف
100 2% 42,434‎تومان
433,000‎ریال (با مالیات) 433,000‎ریال (بدون مالیات)

معرفی

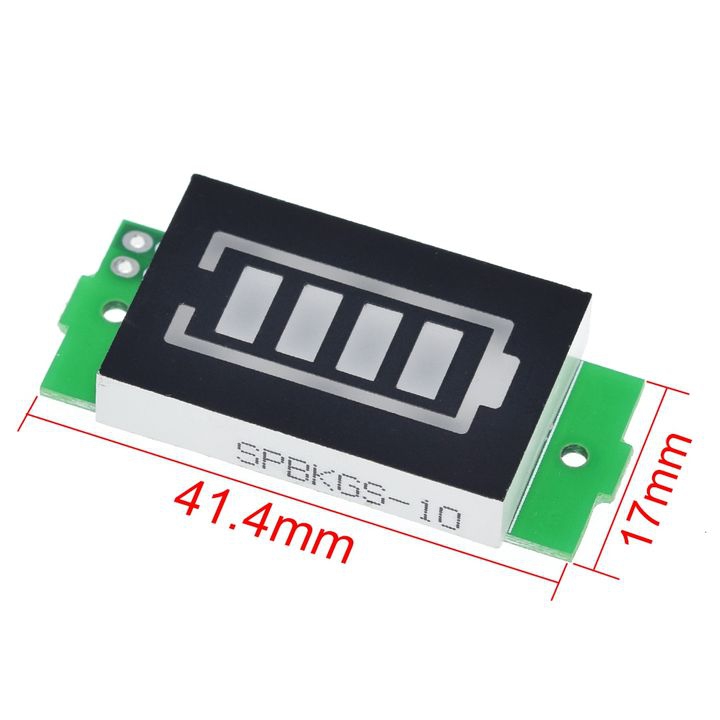

ماژول بارگراف، یک ماژول نمایشگر است که وضعیت شارژ (ظرفیت) باتری‌های لیتیومی 18650 یونی و همچنین سایر باتری‌های لیتیوم با حداکثر ولتاژ 4.2 ولت در هر سل را نشان می‌دهد. برای استفاده به سادگی ماژول را به اتصالات مثبت و منفی باتری متصل کنید. در این حالت وضعیت شارژ باتری در زمان واقعی با استفاده از نمایشگر نوار بصری نمایش داده می‌شود. رنگ نوار خارجی نمایشگر قرمز است و چراغ‌های داخلی نمایشگر آبی هستند.

با استفاده از یک جامپر در پشت ماژول می توانید تعداد سل های باتری لیتیومی را مشخص کرده و میزان شارژ باتری را روی ماژول نمایش دهید.

کاربرد

  • منبع تغذیه DIY
  • شارژرهای باتری RC
  • وسایل نقلیه الکتریکی
  • باتری لیتیومی تک سل
  • پانل‌های ابزار
  • صفحه نمایش دیجیتال خواندن
  • نمایش وضعیت باتری و توان

Introduction

1-8S Lithium Battery Capacity Indicator Module Blue Green Display Electric Vehicle Battery Power Tester 3.7V Li-ion

Feature

1. Battery-power display.
2. A wide range of applications: lithium batteries.
3. How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test.
4. Digital color: the outline is red, and the display frame is blue or Green (when the battery is full, it will all light up)

Description

1. Working voltage: 3-34V, working current 5MA
2. Working temperature: -20 ~ 50 ° C
3. Voltage error: 2% (do not shoot if higher accuracy is required)
4. Size: 43.5 * 20MM

How to use

Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the digital tube will display the real-time battery power.

1. Battery-type power display, select the corresponding pad on the tin, you can detect the battery pack voltage corresponding to 1S-8S, very convenient.

S1-S8 optional pads, only one type can be connected, it is not allowed to have 2 or more short circuits at the same time

2. Connect the positive and negative ports of the display board to the positive and negative ports of the battery under test. (Note that when you connect a series of lithium batteries in series, you need to connect tin to the corresponding pads.) For example, if you are testing a 2S battery (that is, two 3.7V lithium batteries in series), you need to solder on the board corresponding to S2 The tin on the plate is shorted.

3. Pay attention to the corresponding number of battery strings and use it within the corresponding voltage range. Do not exceed a voltage of 4.3 * N. (For example, if you select tin on the pad of S3, the maximum voltage detected by the module should not exceed 4.3 * 3 = 12.9V)

The battery voltage is greater than N * 3.3V, and the power is on for 1 grid.

Display power parameters

1. When the battery voltage exceeds N * 3.3V, it will light up one battery (Note: N represents the battery capacity).
2. When the battery voltage exceeds N * 3.5V, it will light up 2 stops.
3. When the battery voltage exceeds N * 3.7V, it will light up 3 cells.
4. When the battery voltage exceeds N * 3.9V, it will light up 4 cells.
5. When the battery voltage is less than N * 3.3V, 4 displays will be turned off; it means that the battery voltage is less than 3.3V and can be charged
