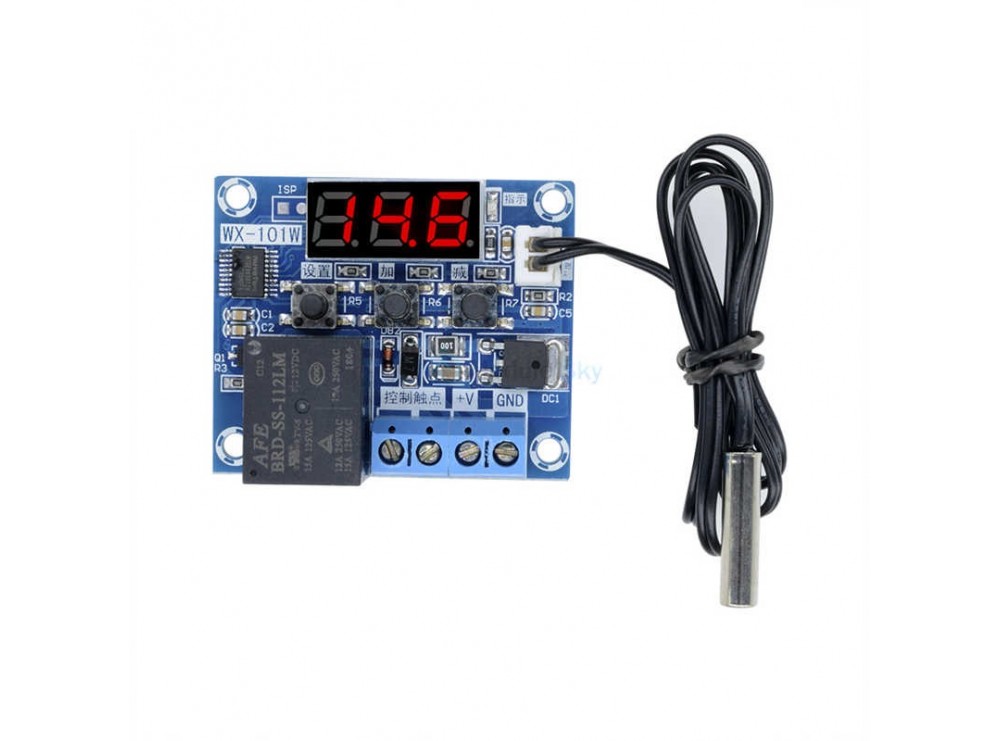

ماژول ترموستات دیجیتال WX-101W

ماژول ترموستات دیجیتال WX-101W یک ابزار پیشرفته برای کنترل دما در سیستم‌های گرمایشی و سرمایشی است. این ماژول با بهره‌گیری از سنسور دقیق NTC10K و نمایشگر دیجیتال، امکان نظارت و تنظیم دما را به صورت لحظه‌ای فراهم می‌کند. قابلیت انتخاب بین حالت گرمایش و سرمایش، تنظیم حساسیت، کالیبراسیون دما و تعریف زمان تأخیر برای تغییر وضعیت رله از ویژگی‌های کاربردی آن است. این ماژول به طور خودکار وضعیت رله را با توجه به دمای محیط کنترل کرده و در صورت بروز خطاهایی مانند قطع یا کوتاه‌شدن سنسور، با نمایش هشدار مناسب، از سیستم محافظت می‌کند. WX-101W برای کنترل دقیق و کارآمد دما در کاربردهای مختلف طراحی شده است.

مشخصات:

• ولتاژ کاری 12 ولت DC
• سنسور NTC10K
• نرخ تازه سازی اطلاعات 0.5 ثانیه
• دقت 0.1 درجه

نحوه استفاده:

Specification
Temperature range :-50 to 110 C
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution  When temperature is 0.1 C, the resolution is -9.9~99.9, other temperature segment is 1 C
Control accuracy: 0.1 C
Hysteresis accuracy: 0.1 C
Refresh rate: 0.5S
High temperature protection   0-110 C
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 12A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60 C   Humidity 20% -85%

Instruction

First use a connection power supply and load line, can for power supply of temperature control board and display is the current temperature.Press”+“or” —”to adjust the control temperature, After press ‘setting' key to save. Out. The temperature control board for automatic control mode of heating. According to the set temperature automatic control relay on-off, temperature control board relay electric contactor is 12A, can match most of the high power load equipment.

Digital display and status indication

Light up: relay connected Light off: relay disconnect For sensor: display “EO" for sensor open circuit, display ‘---' for sensor short circuit, no matter what kind of fault control board will cut off the load and automatically protect!

1. Electricity factory Setting: hold the setkey, set the release button 3 seconds torestore the factory Settings!
2. Control mode: press "set" button at once, Let it display F - 1, and then press "set"button to enter the F - 1 manu ,and then click
"+" button display “H H ” for heating control mode, according to "-" button display "CC" to refrigeration control mode, Last press
"set" for preserve and exsit.
3. Temperature Setting: under the displays the current temperature directly at '+' or '-'button can set the required control point
temperature, After finish the installation.press "set" for preserve and exsit.
4. Return difference Setting: Press "set"button display "F - 1", then press the "+"button or "-" button can adjust function, when
display F - 1 ,press "+" button to let its display F - 2, This time press "set" button to enter at F - 2 functions, it's return difference
parameter adjustment interface,press the "+" or "-" button to adjust return difference values, the return difference mean start
and stop temperature difference, if want to control the heating ,If control temperature setting 30 degrees, Return difference set to
2, is the current temperature over 30 degrees, Relay disconnect.lower than 28 degrees relay connect, The Return difference of 2!
Refrigeration control is opposite control state!
5.Temperature correction Setting: adjustment function is display F -3, according to press a"set" button to enter the F - 3 parameters to adjust interface, the adjusting range of -5.0~ 5.0, when the temperature is not accurate, can be temperature
correction according this function, if the measurement of the current temperature is higher than the actual temperature of 0.5 degrees, calibration parameters can be adjusted to -0.5, press "setting" for preserve.
6. Delay start time Setting: after "stop "start to the next start, To satisfy setting time and then can be start , generally for protect
the compressor at refrigeration control mode, the heating control can be set to "0", the factory default is "0", delay time "0 "to "10 "minutes.
