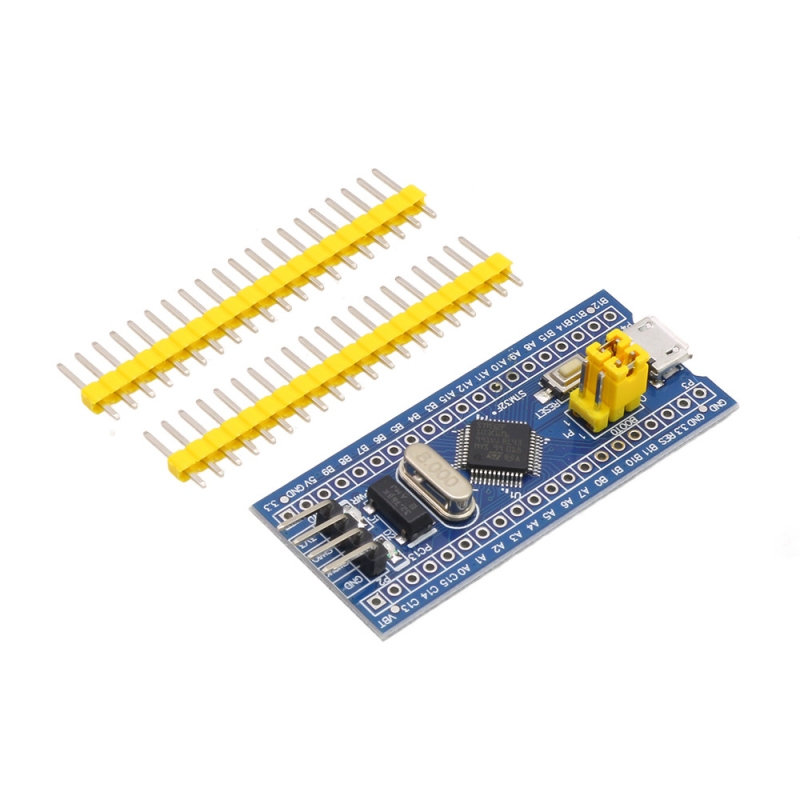

مینی هدر برد STM32F103C6T6

معرفی

خانواده STM32 از سری میکروکنترلرهای 32 بیتی مبتنی بر پردازنده ARM Cortex می باشد که با هدف ایجاد معنای جدیدی از آزادی عملکرد برای کاربران میکروکنترلرها ایجاد گشته است. در این خانواده از میکروکنترلرها تلفیقی از کارایی بالا، عملکرد همزمان، پردازش سیگنال های دیجیتال و کاربردهای کم توان در بالاترین سطح کیفی و با حفظ یکپارچگی کامل و سهولت توسعه، ارائه می گردد.از جمله امکانات مهم میکرکنترلر STM32F103C6T6 ، هسته Cortex M3 با سرعت 72MHZ، اینترفیس موازی ، ADC 12 بیتی و دارا بودن اینترفیس های متنوعی از جمله USB، Can، I2C، USART، SDIO و ... می باشد.

Introduction
1:on-board-based MCU most basic circuits, such as crystal oscillator circuit, USB power management circuitry and USB interface.
2:the core board raises all I / O port resources.
3:with the SWD debugging emulator download interface, which requires a minimum of 3 lines can be completed commissioning download tasks, compared to traditional JTAG debugging there are a lot of benefits, a plug in here, JTAG and now a great tendency to be phased out, such as ST's new out of the M0 MCU series to retain only the SWD debug interface, JTAG directly canceled
4:Dimension only traditional DIP40 package (such as AT89S52 ) size, has not yet found on Taobao smaller than our core board the same specifications.
5:the use of current smart phones used Mirco USB interface easy to use, do USB communications and power supply.
6:for the STM32 RTC can not afford to vibration problems, we recommend using the official low-load RTC crystal scheme, and use the Epson brand crystal, without the use of an inexpensive cylindrical crystal.
7:with a high quality 1 * 40 / 2.54mm pitch single row pin ensure excellent conductive contact, user-friendly core board is placed into a standard-purpose board or breadboard. Pin default is not welding, the user can choose according to their needs welding direction.
8:You can use the Keil compiler, IAR compiled by J-Link or USART1.

Specification

ARM 32-bit Cortex™-M3 CPU Core
72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
Memories
16 or 32 Kbytes of Flash memory
6 or 10 Kbytes of SRAM
Clock, reset and supply management
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4-to-16 MHz crystal oscillatorپ
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC
PLL for CPU clock
32 kHz oscillator for RTC with calibration
Low power
Sleep, Stop and Standby modes
VBAT supply for RTC and backup registers
2 x 12-bit, 1 μs A/D converters (up to 16 channels)
Conversion range: 0 to 3.6 V
Dual-sample and hold capability
Temperature sensor
DMA
7-channel DMA controller
Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
Up to 51 fast I/O ports
26/37/51 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Debug mode
Serial wire debug (SWD) & JTAG interfaces
6 timers
Two 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
16-bit, motor control PWM timer with dead-time generation and emergency stop
2 watchdog timers (Independent and Window)
SysTick timer 24-bit downcounter
6 communication interfaces
1 x I2C interface (SMBus/PMBus)
2 × USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
1 × SPI (18 Mbit/s)
CAN interface (2.0B Active)
USB 2.0 full-speed interface
