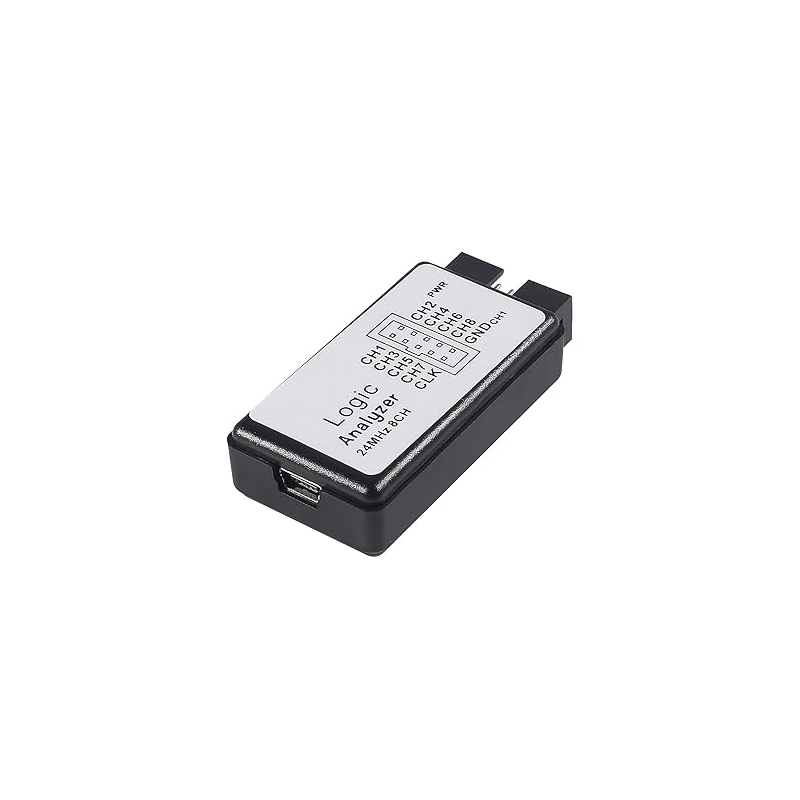

لاجیک آنالایزر 8 کاناله USB 24MHZ این دستگاه جهت مشاهده سیگنالهایی شبیه spi,twi,uart,one wire و... استفاده می شود و ارتباط آن از طریق USB می باشد. این لاجیک آنالایزر آخرین مدل از این سری بوده که تغییرات سخت افزاری عمده ای با نسخه های قدیمی دارد. سرعت و کیفیت نمونه برداری افزایش یافته و برای موارد خاص که نیاز به دقت بالاتری می باشد، می توانید با اعمال کلاک به پایه CLK ، دقت و نرخ نمونه برداری را افزایش دهید.
1, Software: Software for official purposes, SALEAE8, and SALEAE 16 are using the same software, all protocol analysis, the maximum memory depth, trigger settings, as well as other operations no difference. Also, SALEAE8 product is fully compatible with the official result of the hardware, so support for the official SALEAE software version and the official support future software upgrades. And SALEAE16 does not appear compatible with unmodified official software products
2, protocol support: the so-called protocol support, is PC software features that are on the captured data in accordance with the rules of protocol analysis. SALEAE8 and SALEAE16 number of supported protocols as much as using the same analytical software. Use all supported protocols are not more than five channels, also said that the use SALEAE8 adequate. All buses are supported board (for example, I2C SPI UART, etc.) or short-range communication (for example CAN, UART, etc.), these buses will not exceed the rate of 10M, 24M logical analysis used for signal capture crawl has adequate.
3, the sampling rate and number of channels: SALEAE 8 is truly the highest 24M 8-channel sampling, SALEAE16 in 100M sampling rate can only be achieved 3
Channel acquisition, and in the 16-channel acquisition mode, the sampling rate can only be achieved to 16M sampling rate
4, the computer requirements: Because SALEAE Series no dedicated hardware logic analyzer memory, the contents of the collection are real-time upload to the computer, which the computers have higher requirements, are required to support USB 2.0 high speed, while SALEAE16 requirements of the USB speed close SALEAE8 2 times, so the speed of the USB interface and the system can be higher bandwidth requirements.
5, price, SALEAE8 has been widely cottage to support the original software SALEAE Taobao arbitrarily selected, 40 yuan; support the original software SALEAE only SALEAE official sale, the price is very high.
6, another SALEAE series logic analyzer results only support online viewing, does not support the text export. Terms of the agreement make SALEAE only suitable timing observations, and for access to the contents of the agreement itself is not appropriate. This USBEE AX and USBESS DX done a good job, you can directly export the text format to standardize the analysis of the specific content.
8 channels input;
Logical light indication: a small light indicate CHO electrical level;
Input feature: 5PF, 100K Ohm;
USB power supply;
Sampling rate can be set as below:
24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
Data upload real time,the max of depth of collection is 10T, far from practical need;
Support WIN7(32&64), 2K, XP, LINUX
